Standard Front Shock Absorber Struts (Pair) – BMW 3 Series G20 (19–26)

SKU: 31316888452
R 3,750.00

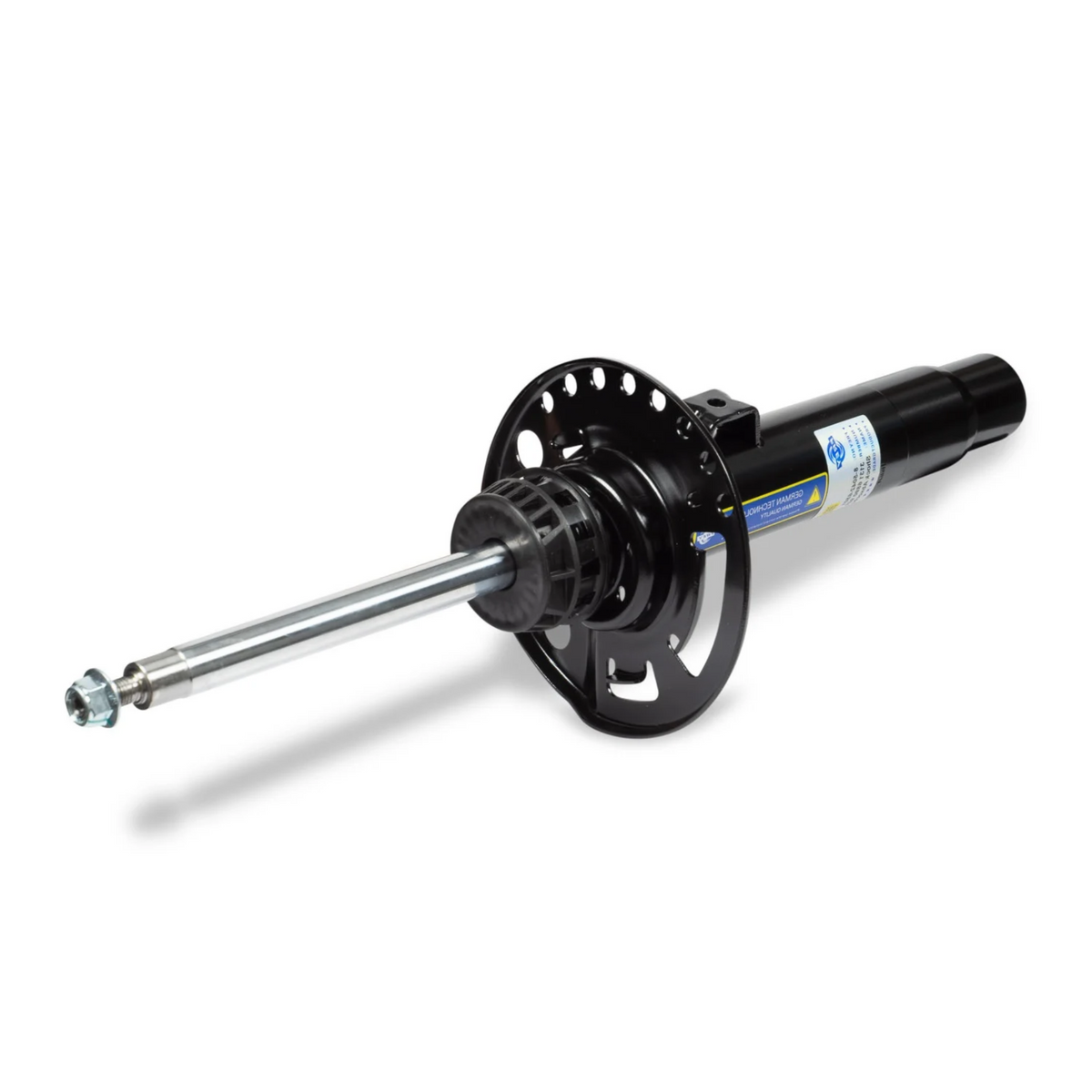

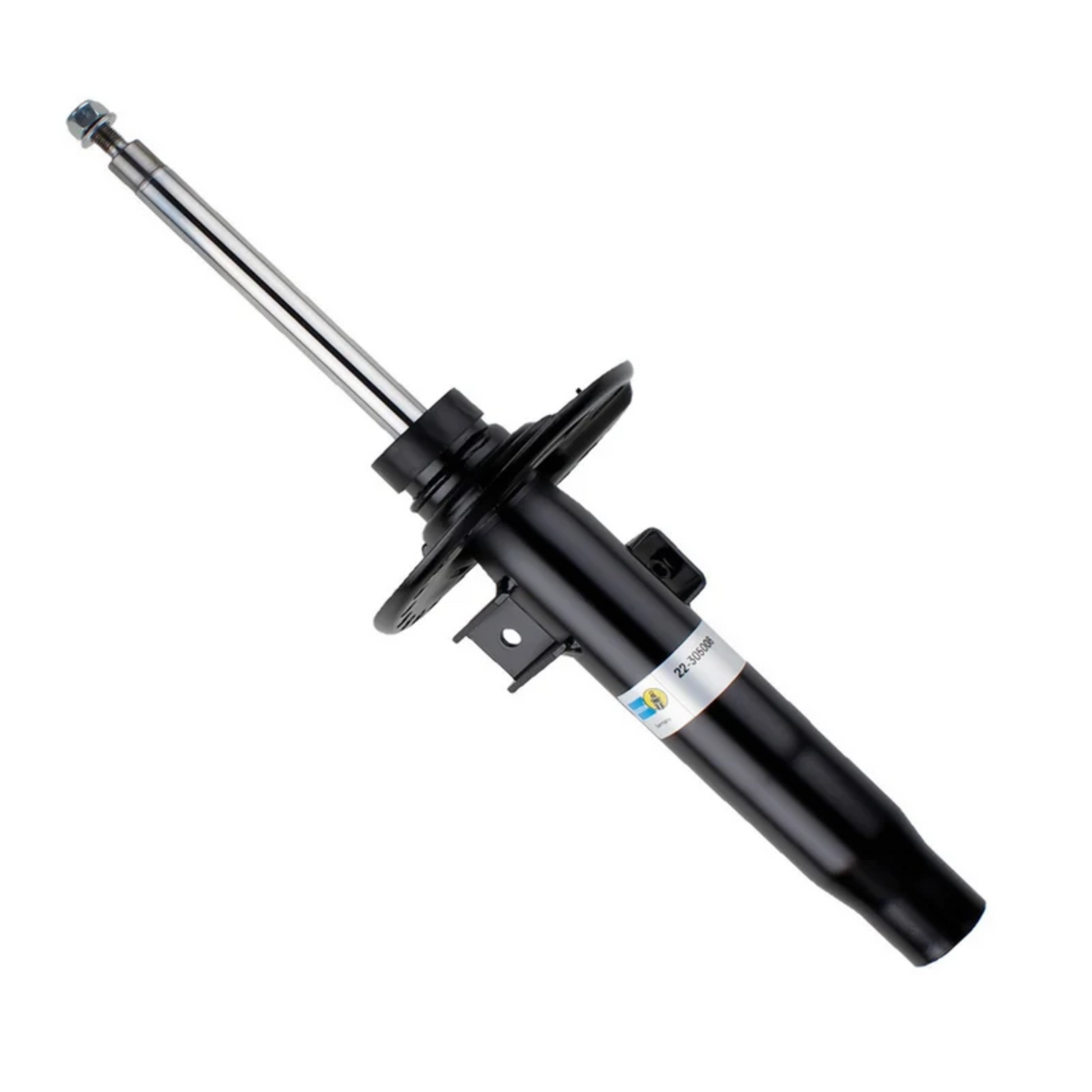

The Genuine BMW Standard Front Shock Absorber Struts Set is a factory-matched pair of gas-pressurized front suspension struts engineered specifically for rear-wheel-drive (RWD) 7th-generation BMW 3 Series Sedans (G20). Designed for vehicles with standard base suspension systems, these twin-tube hydraulic struts utilize BMW’s stroke-dependent displacement damping technology to deliver optimal ride comfort, noise isolation, and sharp front-end chassis control.

Sold as a left-and-right balanced set, replacing worn or leaking factory struts restores original ride height, eliminates front-end rebound floating, and mitigates uneven tire tread wear. Both struts feature precision-machined lower pinch-clamp housings, sway bar end-link brackets, and top piston rod threading designed to accept factory coil springs, upper strut mounts, and dust boots.

Exact Vehicle Compatibility: Direct-fit OEM front suspension strut pair engineered specifically for RWD BMW 3 Series Models produced from 2019 to present (Pre-LCI & LCI Facelift):

  • BMW 3 Series Saloon (G20 Chassis - RWD): 2019–2026 (318i, 320i, 330i, 330e Plug-In Hybrid)

  • European Market Models: 2019–2026 (316d, 318d, 320d RWD variants with standard suspension)

Part Positioning & Component Breakdown:

  • Front Right Strut (Passenger Side LHD / Nearside RHD): Part Number 31316888452

  • Front Left Strut (Driver Side LHD / Offside RHD): Part Number 31316888453

  • Structural Assembly Interface: Welded sway bar stabilizer end-link mounting tab, brake line clip bracket, and lower steering knuckle pinch collar guide.

1.Vehicle Preparation & Wheel Removal:Safe elevation and wheel hub support.

Safely raise the front of the vehicle on a two-post hydraulic lift or heavy-duty jack stands. Remove the front wheels. Support the lower swivel bearing / steering knuckle assembly with a screw jack or hydraulic jack to prevent tension on the brake lines and ABS sensor wiring.

2.Linkage & Hub Disconnection:Unfastening sway bar link, brake brackets, and tie rod.

Unbolt the stabilizer sway bar end-link from the mounting tab on the strut body. Unclip the brake hose, ABS wheel speed sensor wire, and brake pad wear sensor harness from the strut brackets. Loosen and remove the lower steering knuckle pinch bolt securing the base of the strut.

3.Strut Removal & Spring Transfer:Releasing knuckle pinch collar and upper mount bolts.

Use a spreader tool to open the lower steering knuckle pinch joint slightly, allowing the lower strut tube to slide free. In the engine compartment, remove the top strut tower plastic covers and unbolt the 3 upper strut mount Torx bolts. Carefully lower the strut assembly out of the wheel arch. Place the strut in a spring compressor, safely compress the coil spring, unbolt the top piston rod nut, and transfer the coil spring, upper guide mount, dust boot, and bump stop onto the new strut (31316888452 or 31316888453).

4.Reassembly & Four-Wheel Alignment:Torquing fasteners to spec and wheel alignment.

Slide the new strut assembly up into the strut tower, loosely start the top tower bolts, and guide the lower strut base fully down into the steering knuckle pinch sleeve. Torque the lower pinch bolt, stabilizer link nut, and upper tower bolts to factory torque specifications. Reinstall wheels and immediately perform a comprehensive 4-wheel laser alignment to correct toe and camber specs.

Specifications:

  • Part Name: Standard Front Shock Absorber Struts (Pair)

  • Placement on Vehicle: Exterior Front Suspension (Left & Right Pair)

  • Suspension Type: Standard Base / Non-Adaptive / Non-M Sport

  • Drivetrain Compatibility: Rear-Wheel Drive (RWD / sDrive)

  • Material: High-Strength Galvanized Steel Outer Tube & Chrome-Plated Piston Rod

  • Finish: Corrosion-Resistant Powder-Coated Black

  • Product Line: Chassis & Suspension Dampening Components

  • Condition: Brand New Genuine BMW Replacement
