X1
Replacement Part (New)

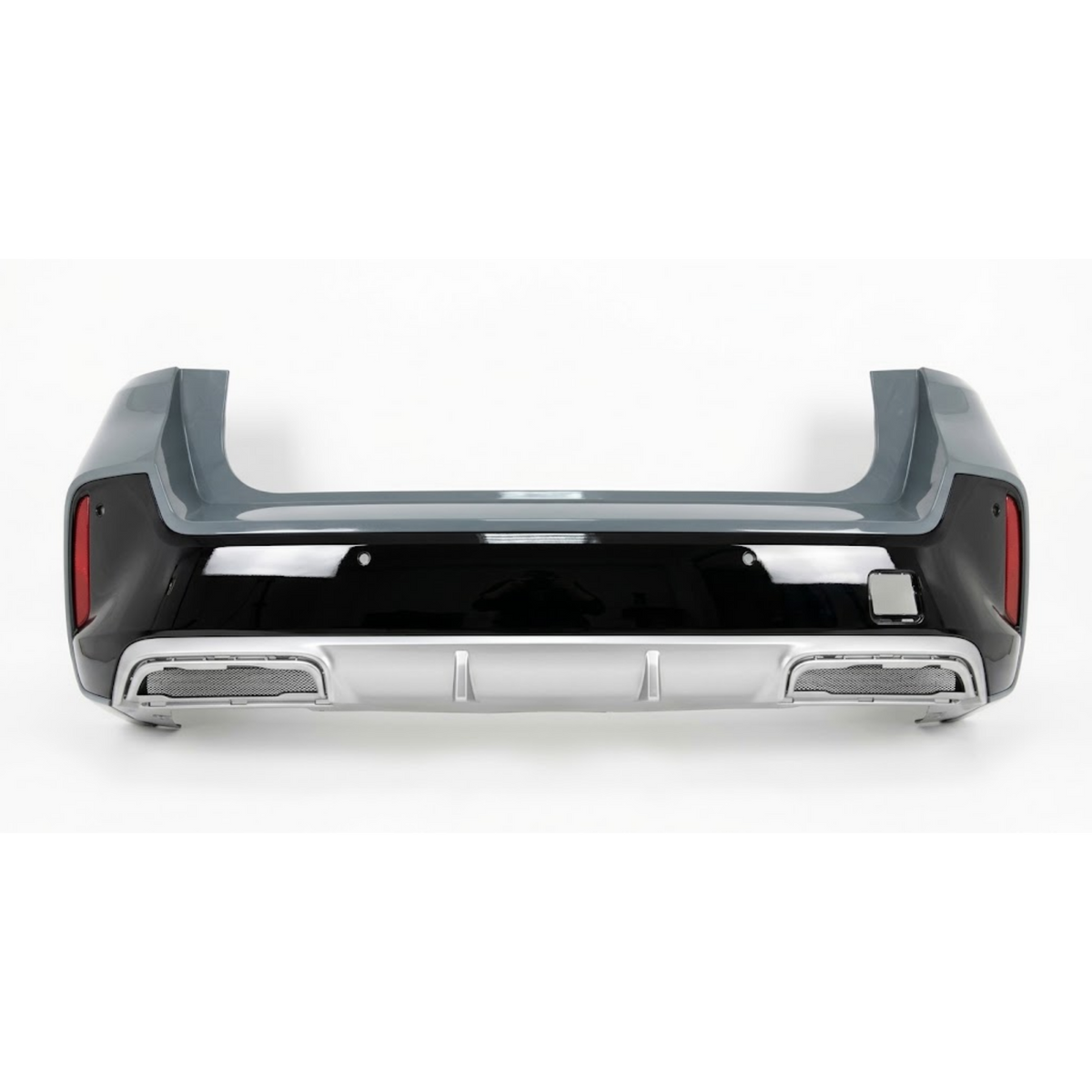

Rear Bumper Assembly (With PDC) – BMW X1 U11 Msport (22–26)

SKU: 51129881934
R 13,500.00

The BMW Rear Bumper Assembly Shell is an original equipment rear body cover engineered specifically for the 3rd-generation BMW X1 Sports Activity Vehicle (SAV) and all-electric iX1 (U11 platform). Designed for vehicles equipped with the standard base or xLine Exterior Trim Package, this multi-piece rear fascia features pre-moulded Park Distance Control (PDC) sensor cutouts and structural mounting channels for the lower accent panels.

Manufactured from high-grade automotive Polypropylene (PP), the bumper skin provides high elasticity against minor parking contact, stress cracking, and atmospheric weathering. The multi-tiered design combines the main painted upper skin with a mid-tier High-Gloss Shadowline Black accent strip housing the ultrasonic PDC sensors and a lower silver aerodynamic skid plate valance framing the underbody apron.

Exact Vehicle Compatibility: Direct-fit OEM rear bumper assembly engineered specifically for 3rd-Generation BMW X1 & iX1 Models produced from 2022 to present (U11 Chassis):

  • BMW X1 SAV (U11 Chassis): 2022–2026 (xDrive28i, sDrive20i, xDrive20i, xDrive30e Plug-In Hybrid, sDrive18d, xDrive20d — Standard & xLine models)

  • BMW iX1 Electric SAV (U11 Chassis): 2022–2026 (iX1 eDrive20, iX1 xDrive30 — Standard & xLine models)

Component Breakdown & Sub-Assembly Details:

  • Main Upper Bumper Skin: Primed or body-color painted polypropylene outer skin featuring precision alignment tabs along the rear quarter panel shut lines.

  • High-Gloss Black Central Trim Strip: Middle accent insert housing pre-drilled Park Distance Control (PDC) sensor holders and wiring harness clips.

  • Lower Silver Valance / Skid Plate Diffuser: Aerodynamic lower apron section in satin silver trim providing underbody protection and framing rear reflector modules.

  • PDC & Harness Integration: Pre-placed mounting rings for 4-sensor or 6-sensor lateral Parking Assistant configurations.

1.Vehicle Preparation & Tail Light Removal:Safe elevation and tail light cluster removal.

Safely elevate the vehicle on a hydraulic two-post lift or ramp stands. Open the rear tailgate and remove the inner boot side access trim panels. Unbolt the retaining thumb screws securing the left and right LED tail light assemblies, pull the light clusters rearward, and disconnect their electrical plugs.

2.Underbody & Wheel Arch Disassembly:Unbolting lower splash tray and wheel arch liner fasteners.

Remove the inner rear wheel arch liner fasteners on both sides to access the vertical bumper-to-quarter panel bracket screws. Unbolt the lower splash guard and diffuser Torx screws running along the bottom chassis support frame.

3.Bumper Cover Shell Removal:Releasing side guide rails and disconnecting PDC harness.

Using a plastic trim wedge tool, carefully release the outer side bumper clips beneath the rear quarter panel edges. With an assistant supporting the bumper, gently pull the assembly outward from the body frame. Reach behind the left wheel arch area to disconnect the main PDC wiring loom plug and license plate light connector before setting the shell on a padded workbench.

4.Component Transfer & Reassembly:Transferring PDC components, valance clip-in, and final alignment.

Transfer the factory PDC sensors, wiring loom, and lower reflectors onto the replacement bumper shell (51129881934). Snap the high-gloss central trim strip and silver lower valance securely into the main cover. Guide the assembled bumper onto the quarter panel rails, reconnect the main electrical harness, torque all upper and lower fasteners, verify uniform shut lines along the tailgate, and reinstall the tail light units.

Specifications:

  • Part Name: Rear Bumper Cover Assembly / Standard & xLine Rear Bumper Shell

  • Placement on Vehicle: Exterior Rear, Center

  • Trim Level Compatibility: Standard Base / xLine Trim Package

  • Material: High-Impact Automotive Polypropylene (PP)

  • Finish: Body-Color Painted / High-Gloss Shadowline Black & Satin Silver Accents

  • PDC Sensor Compatibility: Pre-Formed Holder Rings for Factory Parking Distance Control

  • Product Line: Exterior Body Shell & Replacement Fascias

  • Condition: Brand New Genuine BMW Replacement Component
