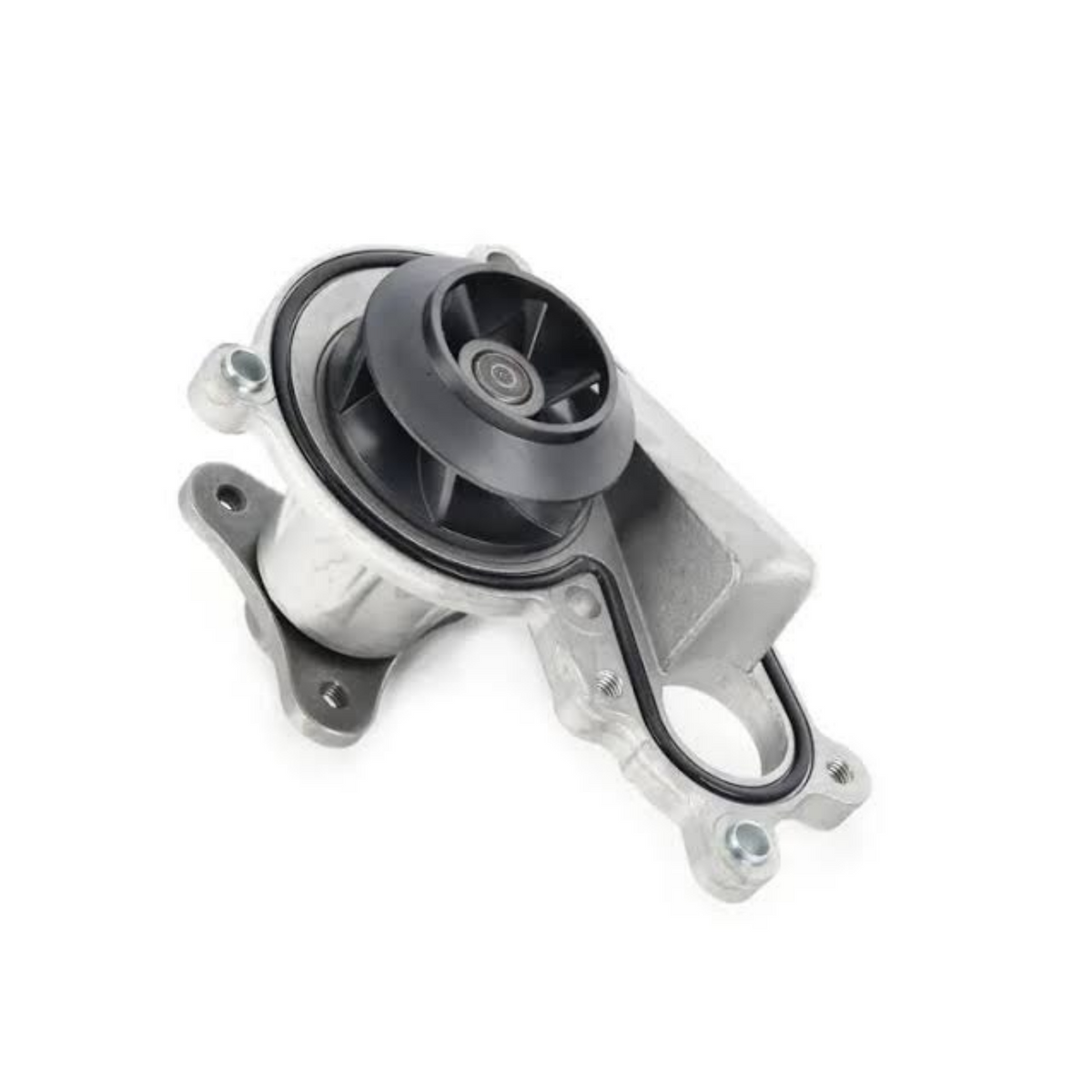

Coolant Water Pump (2.0L Turbo B46 & B48) – BMW 2, 3, 4, 5 series & X3, X4, X5 (19-26)

SKU: 11518482250
R 2,500.00

The BMW Mechanical Engine Coolant Water Pump is the primary belt-driven mechanical coolant circulation pump engineered specifically for modular B46 and B48 2.0-liter inline 4-cylinder turbocharged engines. Unlike earlier electric N-series water pumps, the B46/B48 engine architecture utilizes a mechanical main water pump driven directly by the accessory serpentine belt, providing continuous displacement flow to regulate engine block thermal conditions and prevent cylinder head distortion.

Manufactured from high-density cast aluminum with a precision-machined impeller hub and internal ceramic shaft seal, this water pump assembly is supplied with a pre-formed rubber perimeter sealing profile gasket. Replacing a leaking or noisy mechanical water pump restores consistent thermal management, prevents coolant loss around the pulley shaft bearing, and safeguards thermal management module (heat management module / thermostat) functionality.

Exact Vehicle Compatibility:

Direct-fit OEM mechanical coolant water pump engineered specifically for BMW 2.0L Turbo B46 / B48 Engine Platforms produced between 2019 and 2026:

  • BMW 2 Series (G42 Chassis): 2022–2026 (230i, 230i xDrive)

  • BMW 3 Series (G20 / G21 Chassis): 2019–2026 (330i, 330i xDrive, 330e Plug-In Hybrid)

  • BMW 4 Series (G22 / G23 / G26 Chassis): 2021–2026 (430i, 430i xDrive, 430i Gran Coupé)

  • BMW 5 Series (G30 Chassis): 2017–2023 (530i, 530i xDrive, 530e Plug-In Hybrid)

  • BMW X3 Series (G01 Chassis): 2018–2024 (X3 sDrive30i, X3 xDrive30i)

  • BMW X4 Series (G02 Chassis): 2019–2024 (X4 xDrive30i)

  • BMW X5 Series (G05 Chassis): 2019–2026 (xDrive30i / sDrive30i international variants)

  • BMW Z4 Series (G29 Chassis): 2019–2026 (Z4 sDrive30i)

1.Vehicle Setup & Coolant Draining:Safe cooling system pressure relief and fluid drain.

Safely raise the vehicle on a lift or jack stands. Wait until the engine is completely cool, open the expansion tank cap to relieve system pressure, and remove the lower splash guard. Position a clean fluid catch basin beneath the radiator drain plug and loosen it to drain the engine coolant completely.

2.Serpentine Belt & Pulley Disassembly:Releasing drive belt tension and removing pulley bolts.

Using a Torx/socket driver on the belt tensioner arm, release tension on the drive belt and slip it off the water pump pulley. Unbolt the three mounting bolts holding the drive pulley onto the water pump flange and remove the pulley to expose the pump housing.

3.Water Pump Removal & Mating Surface Cleaning:Unbolting pump housing and surface preparation.

Unbolt the perimeter mounting screws securing the water pump housing (11518482250) to the engine block. Carefully pry the old pump outward, catching residual coolant. Thoroughly clean the engine block mating surface with lint-free cloths and a nylon scraper to remove old gasket residue, corrosion, and dirt.

4.Installation & Vacuum Coolant Bleeding:Torquing bolts, belt installation, and vacuum bleed.

Position the new Genuine BMW water pump with its new rubber gasket flush against the engine block. Insert mounting bolts and torque in a cross pattern to factory specification. Reattach the drive pulley, reinstall the serpentine belt, fill the cooling system using a vacuum refill tool with genuine BMW HT-12 antifreeze mix, and run the automated electric auxiliary pump bleed procedure to purge all trapped air.

Specifications:

  • Part Name: Mechanical Engine Coolant / Water Pump Assembly

  • Engine Family: BMW 2.0L Inline-4 Turbocharged B46 / B48

  • Drive Type: Mechanical Accessory Serpentine Belt Drive

  • Placement on Vehicle: Engine Front Housing, Lower Left

  • Material: High-Density Die-Cast Aluminum Body & Steel Shaft

  • Included Components: Water Pump Assembly, Pre-Formed Rubber Gasket

  • Product Line: Engine Cooling & Thermal Management Components

  • Condition: Brand New BMW Replacement
