1 Series,2 Series,3 Series,4 Series,5 Series,7 Series,X3,X4,X5,X6
Replacement Part (New)

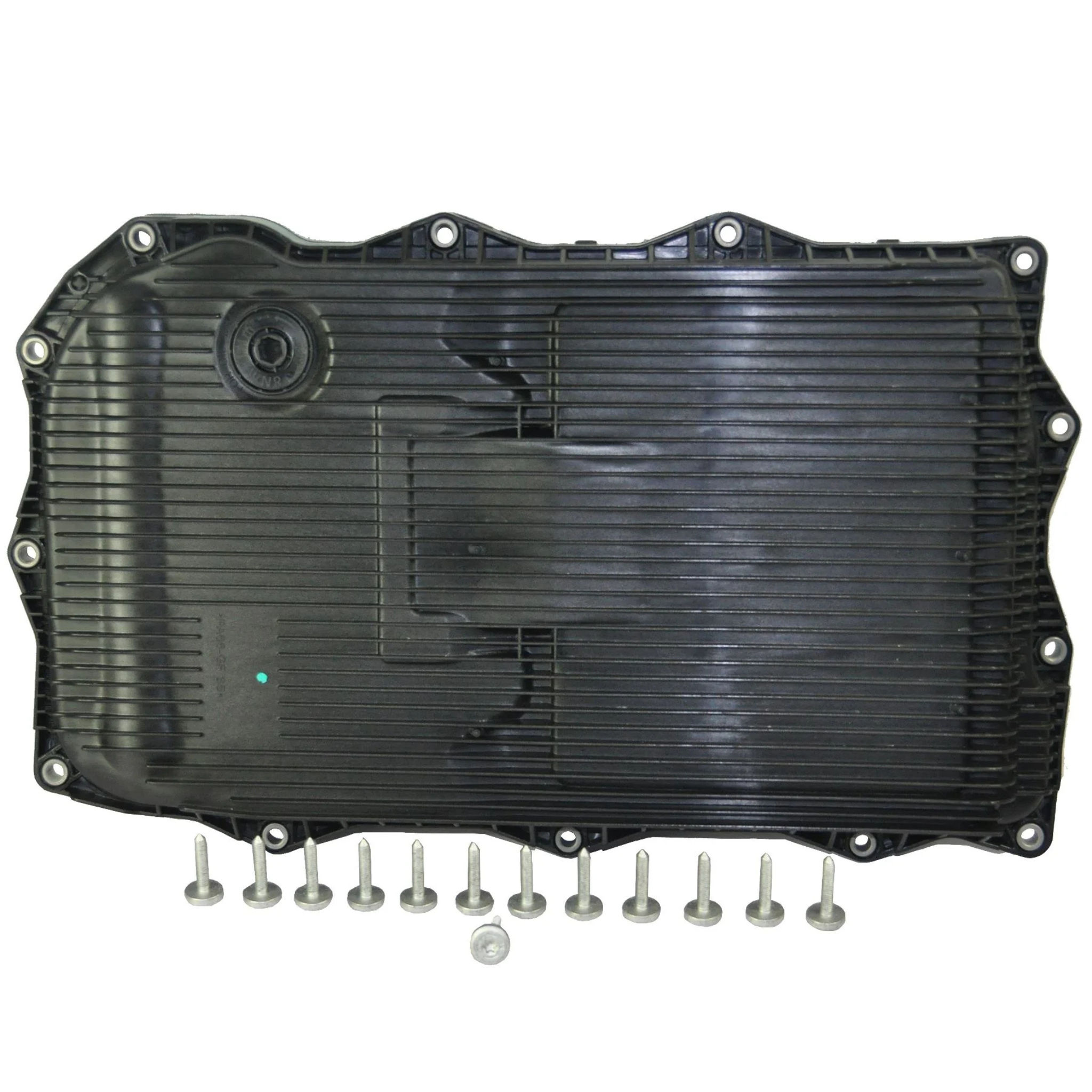

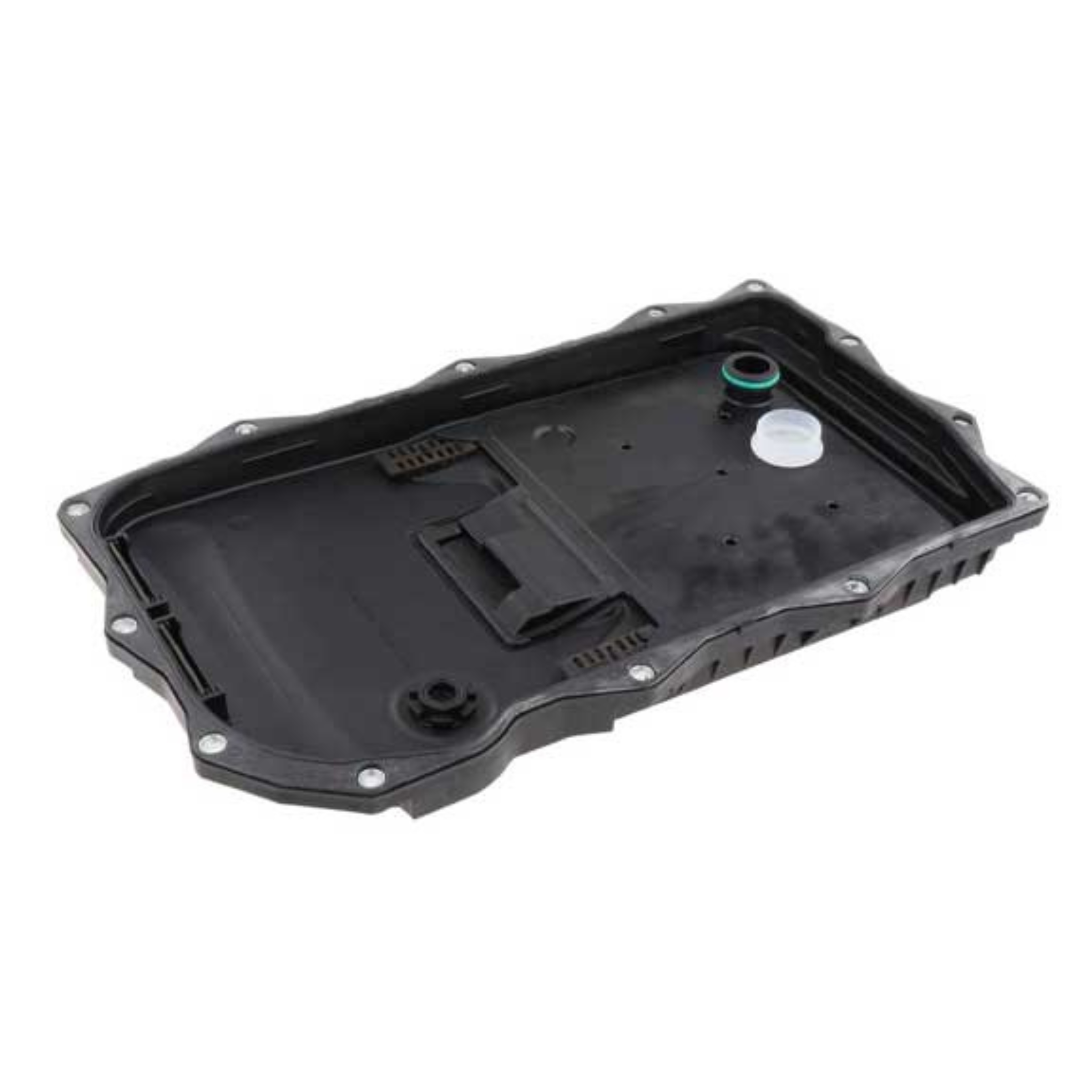

Automatic Transmission Oil Pan & Filter Kit – BMW 1, 2, 3, 4, 5, 7 Series & X3, X4, X5, X6 (11-21)

SKU: 24117624192
R 1,250.00

The BMW / ZF Automatic Transmission Oil Pan Filter Assembly is an integrated service kit designed for maintenance of ZF 8-speed automatic transmissions (specifically the 8HP45 and 8HP70 gearbox families). Because the fine micro-felt transmission fluid filter and perimeter rubber sealing gasket are molded directly into the composite plastic sump body, the entire pan assembly is replaced as a single unit during scheduled fluid changes or transmission servicing.

Manufactured from high-density, heat-resistant polyamide composite plastic, the pan features integrated magnetic collection inserts designed to capture fine ferrous metallic wear particles from the fluid stream. The kit comes complete with a pre-installed perimeter rubber gasket, an integrated fluid filter screen, a bottom drain plug, and fresh Torx pan mounting bolts to maintain leak-free seal integrity across severe thermal cycles.

Vehicle Compatibility & Transmission Application:

Direct-fit OEM transmission service pan assembly engineered specifically for ZF 8HP45 & 8HP70 8-Speed Automatic Transmissions across BMW, Alpina, MINI, and Rolls-Royce vehicle lines:

  • BMW 1 & 2 Series: F20 / F21 / F22 / F23 (116i, 118i, 120i, 125i, M135i, M140i, 220i, 228i, 230i, M235i, M240i)

  • BMW 3 & 4 Series: F30 / F31 / F32 / F33 / F34 / F36 (320i, 328i, 330i, 335i, 340i, 420i, 428i, 430i, 435i, 440i & xDrive variants)

  • BMW 5, 6 & 7 Series: F10 / F11 / F07 / F12 / F13 / F01 / F02 (520i, 528i, 535i, 550i, 640i, 650i, 740i, 750i)

  • BMW X-Series SAVs & SACs: E84 X1, F25 X3, F26 X4, E70 / F15 X5, E71 / F16 X6 (28i, 35i, 50i & diesel variants)

Part Interchange & Cross-References:

  • Genuine BMW OE Part Numbers: 24117624192 / 24 11 7 624 192

  • Superseded & Equivalent BMW Numbers: 24118612901, 24117613253, 24117604960

  • ZF Original Equipment Manufacturer Code: 1087.298.247 / 1087 298 247 (ZF Parts Kit: 1087.298.365)

1.Vehicle Setup & Fluid Draining:Vehicle elevation and fluid drain.

Safely raise the vehicle on a hydraulic lift ensuring it is completely level. Remove the lower engine and transmission acoustic splash shields. Place a fluid drain catch basin under the transmission, remove the plastic drain plug using an 8mm Allen key, and allow the old ZF LifeguardFluid6/8 fluid to drain completely.

2.Pan Unfastening & Cleaning:Removing bolts and pan detachment.

Loosen and remove the 13 perimeter T40 Torx mounting bolts securing the pan to the transmission housing. Carefully lower the old pan (24117624192), catching remaining residual fluid. Clean the sealing surface on the aluminum transmission casing thoroughly with lint-free shop towels and solvent, ensuring no old gasket material or debris remains on the mating rail.

3.Pan Installation & Bolt Torque Sequence:Torquing new pan in sequence.

Verify the perimeter rubber gasket on the new ZF pan assembly is properly seated. Position the new pan against the valve body, insert fresh bolts by hand, and tighten them in a criss-cross diagonal sequence to initial snugness. Torque all pan bolts to factory specification (typically 10 Nm in a cross pattern).

4.Fluid Fill & Temperature-Monitored Leveling:Fluid refill and leveling procedure at temperature.

Remove the fill plug on the side of the transmission case. Fill with approved ZF LifeguardFluid 8 until fluid begins to overflow the fill hole. Start the engine, run through P-R-N-D gear selections for 10 seconds each while idling. Connect a diagnostic tool to monitor Transmission Oil Temperature. When the fluid reaches 30°C–50°C (86°F–122°F), top off the fluid level until a slight trickle drains out, then tighten the fill plug to specification.

Specifications:

  • Part Name: Automatic Transmission Oil Pan Filter Assembly / Sump Kit

  • ZF Part Reference: 1087.298.247

  • Placement on Vehicle: Underside Transmission Casing

  • Transmission Family: ZF 8-Speed Automatic (8HP45 / 8HP70)

  • Material: High-Density Polyamide Composite Plastic

  • Included Components: Pan Body, Integrated Filter, Perimeter Gasket, Drain Plug, Magnets

  • Product Line: Transmission Service & Maintenance Assemblies

  • Condition: Brand New Genuine BMW / ZF Original Component
