1 Series,2 Series,3 Series,4 Series,M2,X3,X4
Replacement Part (New)

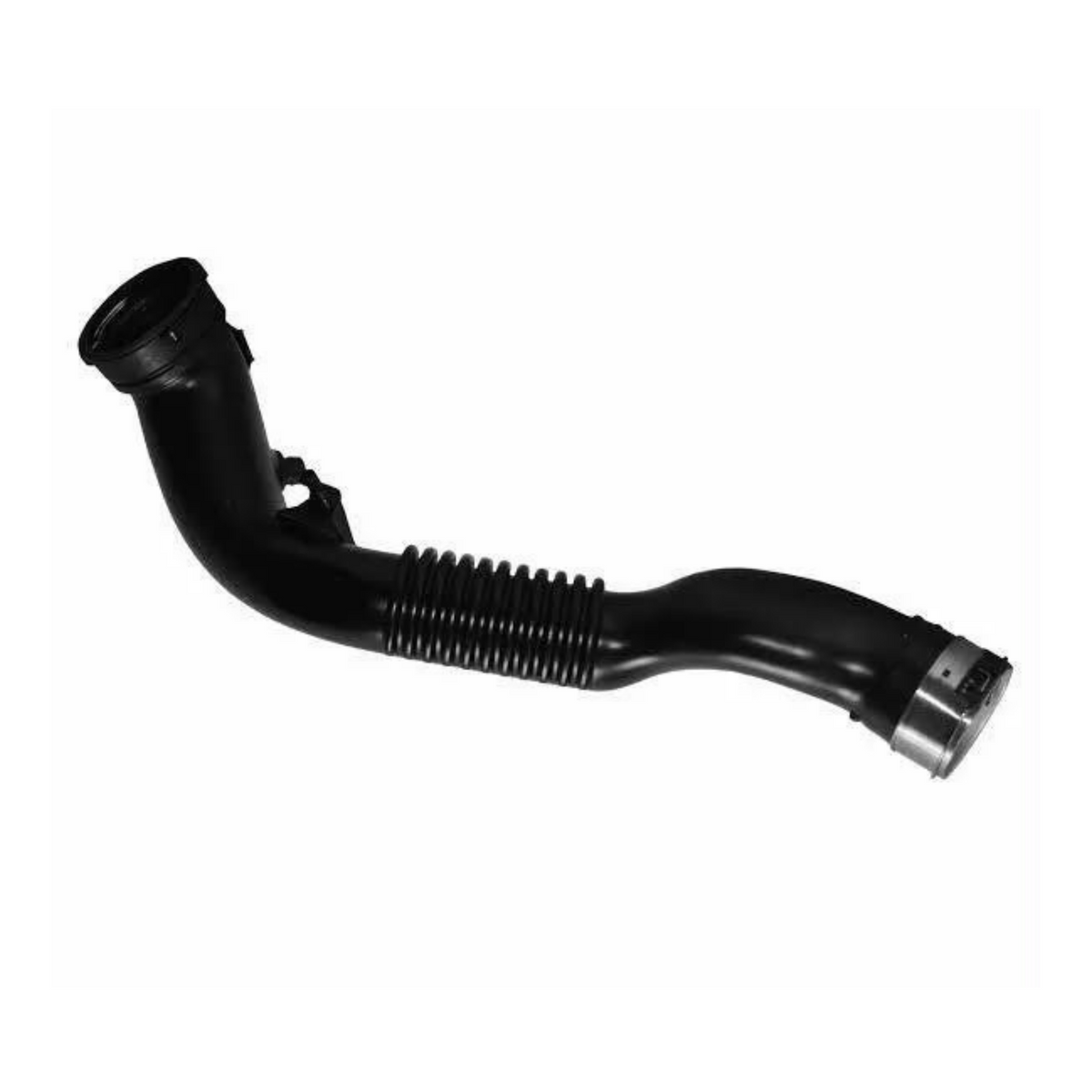

Intercooler Charge-Air Pipe Hose – BMW N55 3.0L Turbo

SKU: 13717604033
R 2,500.00

The Genuine BMW Air Intake Charge-Air Duct Hose is the factory cold-side charge pipe that channels cooled, compressed air directly from the intercooler outlet into the throttle body housing on turbocharged 3.0-liter N55 inline-6 engines. Crucial for maintaining intake pressure and volumetric efficiency, this pipe houses the mounting flange for the TMAP (Temperature / Manifold Absolute Pressure) sensor to supply critical air density data to the DME for fuel injection mapping.

Constructed from rigid molded plastic with a central flexible corrugated accordion bellows, the factory unit is designed to absorb engine roll movement under acceleration. However, thermal cycling and oil vapor degradation render the plastic flange extremely brittle over time, frequently causing catastrophic failure at the throttle body connection lock ring (leading to immediate boost leaks, drivetrain warnings, and limp-home mode).

Exact Vehicle Compatibility:

Direct-fit OEM cold-side charge pipe engineered specifically for BMW N55 3.0L Single-Turbo 6-Cylinder Engine Platforms:

  • BMW 1 Series (F20 / F21 Chassis): 2011–2019 M135i / M135i xDrive

  • BMW 2 Series (F22 / F23 Chassis): 2014–2016 M235i / M235i xDrive

  • BMW M2 Coupé (F87 Chassis): 2016–2018 M2 N55 (Pre-LCI)

  • BMW 3 Series (F30 / F31 / F34 Chassis): 2012–2015 335i, 335i xDrive, 335i GT, and ActiveHybrid 3

  • BMW 4 Series (F32 / F33 / F36 Chassis): 2014–2016 435i, 435i xDrive, 435i Gran Coupé

  • BMW X3 Series (F25 Chassis): 2011–2017 X3 xDrive35i

  • BMW X4 Series (F26 Chassis): 2014–2018 X4 xDrive35i & X4 M40i

Key Features & Failure Modes:

  • Integrated TMAP Sensor Port: Features a factory-sealed mounting pad for the manifold pressure/temperature sensor.

  • Quick-Disconnect C-Clip Flange: Uses standard metal locking wire clips and inner O-ring seals for airtight throttle body and intercooler connections.

  • Brittle Plastic Fatigue Point: Engine bay heat soak causes the plastic retainer ring at the upper throttle body neck to shear off under boost, causing sudden loss of power and fault codes 2C57 / 120308 (Charge Pressure Control: Pressure Too Low).

1.Vehicle Preparation & Engine Cover Removal:Safe access and underbody disassembly.

Safely raise the front of the vehicle on ramps or jack stands and remove the lower engine splash shield undertray. Open the bonnet, pop off the plastic engine beauty cover, and disconnect the negative terminal of the 12V battery.

2.TMAP Sensor & Vacuum Disconnection:Disconnecting sensor plug and vacuum lines.

Locate the TMAP sensor mounted on the lower section of the stock plastic charge pipe near the throttle body. Press the locking tab and pull off the electrical connector plug. Unclip any attached vacuum lines or harness guides from the pipe body.

3.C-Clip & Flange Unfastening:Releasing factory retaining wire clips.

Using a flathead screwdriver or pick tool, pry up the metal retaining C-clip at the upper throttle body flange connection. Locate the lower C-clip at the intercooler outlet connection beneath the radiator support and slide it back into its release position. Carefully pry the cracked or swollen charge pipe neck off the metal throttle body receiver.

4.Installation & Boost Seal Verification:Sensor transfer, seal inspection, and lock test.

Unbolt the TMAP sensor from the old pipe and transfer it to the replacement pipe using a fresh O-ring. Ensure the internal rubber sealing O-rings inside both ends of the new charge pipe are seated flat and lubricated with a light film of clean engine oil. Push the new pipe onto the throttle body and intercooler connections until the metal C-clips snap with an audible click, reconnect the TMAP harness, and reinstall the splash tray.

Specifications:

  • Part Name: Air Intake Charge-Air Duct Hose / Cold-Side Intercooler Charge Pipe

  • Engine Code: BMW N55 3.0L Single-Scroll Turbocharge Inline-6

  • Placement on Vehicle: Engine Bay, Left / Cold Side (Intercooler Outlet to Throttle Body)

  • Material: High-Density Thermal Molded Polymer with Flexible Center Bellows

  • Finish: Factory Molded Matte Black

  • Attachment Method: Quick-Disconnect Metal C-Clips with Rubber Seal Rings

  • Product Line: Engine Air Intake & Turbocharger Charge Piping

  • Condition: Brand New Genuine BMW / OE-Spec Replacement
